Details

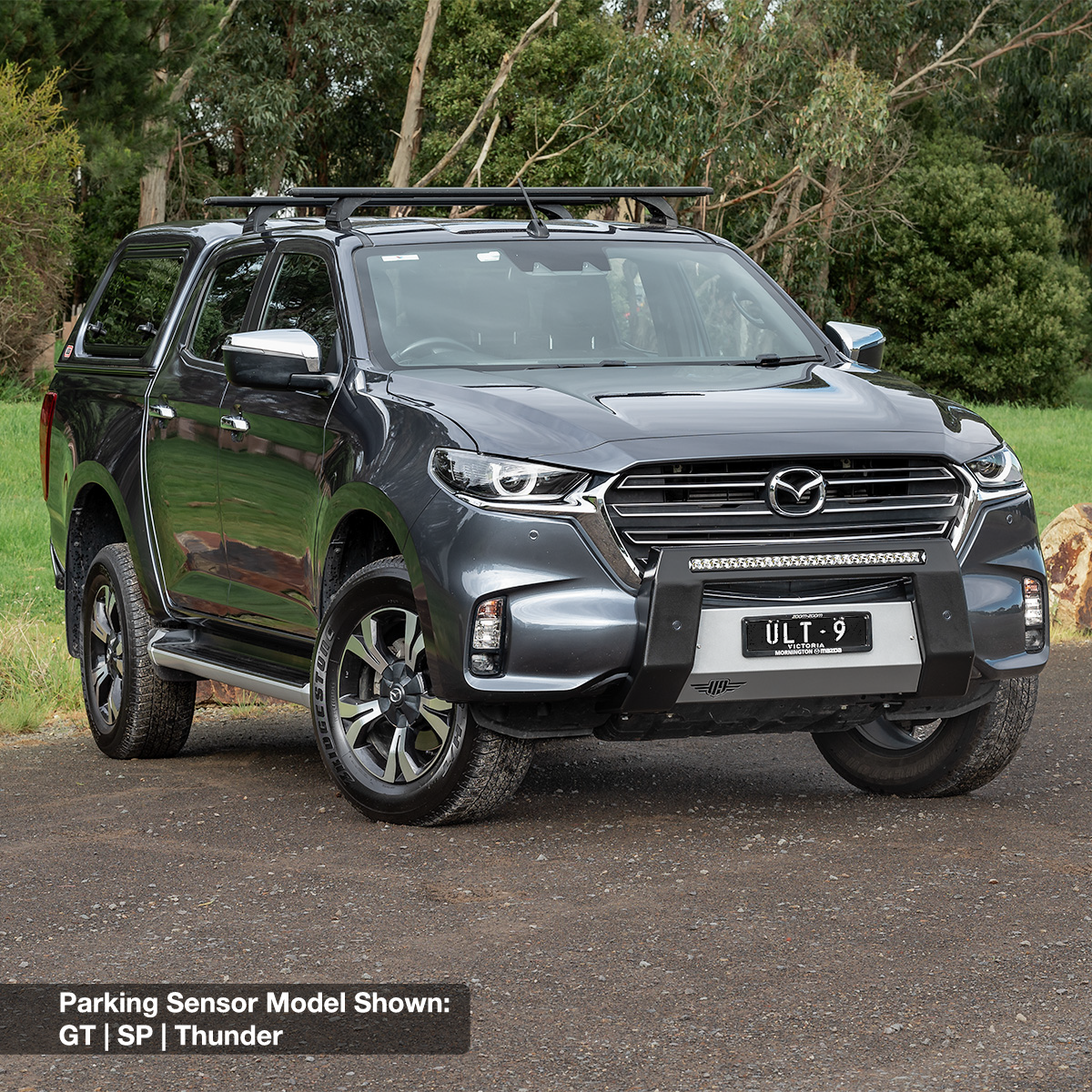

Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.

Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.

Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.

Finished in a Black textured powder coat with a Silver coated centre pan for corrosion protection and a modern feel.

Features:

• Australian-made: Designed, engineered, and manufactured in Australia.
• Steel Frame: 100% Australian-made steel.
• Airbag Compatible: Tested for airbag compatibility
• ADR Compliant: Designed to meet ADR standards.
• Low Profile: Over bumper design with minimal forward projection
• LED Lighting: Includes an Ultimate9 LED Light Bar 26"
• Lightweight: Weighing under 30Kg with included light bar
• Corrosion Protected: Zinc-plated.
• Finish: Black textured powder coat & silver coated centre pan

Optional Lighting:

The Ultimate Nudge Bar to suit Mazda BT-50 2020 - ON (3rd Gen TF) is designed to fit the below light bars using pre-laser-cut points, along with the included light bar:

• Ultimate9 LED Light Bar 20" - Installs on the top of the nudge bar
• Ultimate9 LED Light Bar 20" - Installs on the bottom of the nudge bar

Note: The harness below is required when adding all three light bars.

• Ultimate9 Auxiliary Loom Twin Output Connector

Kit Includes:

• Nudge Bar
• Ultimate9 LED Light Bar 26"
• Ultimate9 Auxiliary Loom Twin Output Connector
• Parking Sensor Extension Looms (front-sensor models)
• High Beam Adaptor
• OE Style Light Switch
• Installation Hardware
• Instructions

Specifications:

• Material (nudge bar): 3mm steel
• Material (centre pan): 1.6mm steel
• Material (mounts): 6mm steel
• Protective coat: Zinc Plated
• Finish Coat (nudge bar): Black textured Powder Coat
• Finish Coat (centre pan): Silver Powder Coat
• ADR Compliant
• Airbag Compatible
• Dimensions: (L) x (W) x (H)
• Weight: < 30Kg
