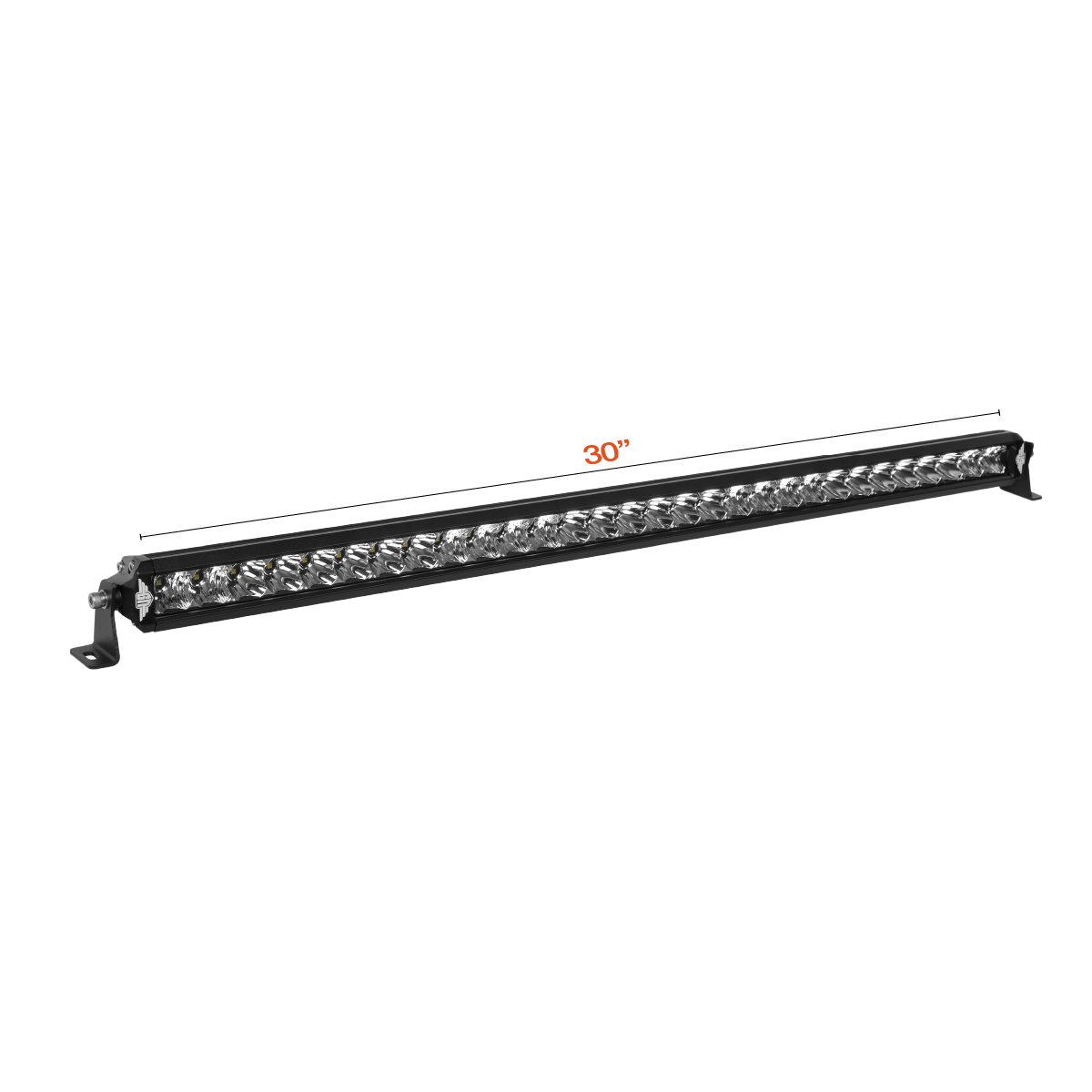

Ultimate9 30" LED Light Bar

Journey on through the night with Ultimate9 LED Light Bars.
A slim, single row LED bar incorporating a screw-less bezel design sealing against all forms of weather, ventilated with the help of a Gore® PolyVent breather and protected by 6063-grade aluminium and GE Lexan® Polycarbonate lenses.

Features:
• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
• IP68 for term long submersion and total dust ingress.
• IP69K for high-pressure cleaning.
• Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.

What Harness Do I Need?
Ultimate9 20”, 26”, & 30” LED Light Bars utilise the Ultimate9 Twin Output Harness.
The Twin Output Harness is capable of powering two 20”, 26” or 30” bars simultaneously.

Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware
Harnesses sold separately

Specifications:

• Input Power: 9-36V
• Beam Pattern: Flood & Spot Combination
• Beam Spread: 8° Spot & 20° Flood
• Power: 150W
• Current Draw: 10A @ 13.2V
• Raw Lumen: 14,280 lm
• Effective Lumen: 7,135 lm
• Beam @ 1 Lux: 582m
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Gore® PolyVent
• Weight: 2.37Kg
• Body Dimensions: (L)762 x (H)46 x (W)49mm
• Lens Dimensions: 30" (811mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM

Warranty: 24-month replacement warranty
