Silicone Intercooler 3 Piece Hose and Clamp Kit suit Ford Ranger / Mazda BT50 2.2L

Suits:

  • 2.2L 4cyl 16V DOHC CRD 110KW/118KW P4AT
  • Ford Ranger PXI, PXII, PXIII Sep 2011 -  Mar 2022
  • Mazda BT50 B22 Nov 2011 - Jul 2020
  • Ensure you check HOT side diameters before ordering

Fitment notes:

  • Please check your HOT (turbo) side before ordering.
  • If the Hot side longer pipe diameter has 55mm both ends, use SSH2205-KIT
  • If the Hot side longer pipe diameter has 55mm/58mm ends, use SSH2201-KIT
  •

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

The SAAS SSH2201-KIT is designed to replace the factory rubber hoses with a higher-grade silicone and remove a potential point of failure, particularly as your vehicle ages.

The kit also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside - upgrade to SAAS Silicone hoses today.

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry



Features

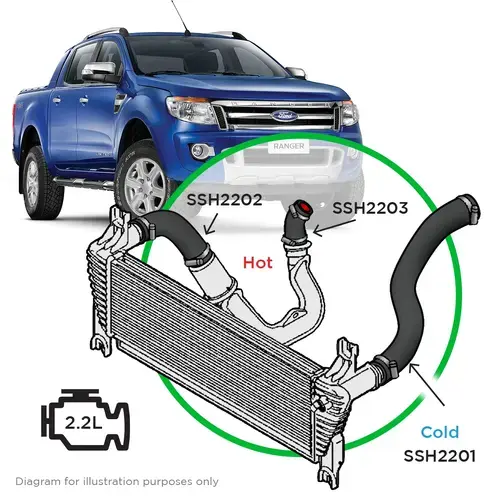

  • Top Cold Pipe. ID 1: 55mm. ID 2: 60mm
  • Hot Side Long Pipe. ID 1: 55mm. ID 2: 58mm
  • Hot Side Short Pipe. ID 1: 46mm. ID 2: 53mm
  • Smooth Form 5 Ply polyester reinforced silicone
  • 6mm wall thickness
  • Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
  • Stable operating temp from -50°C to +200°C
  • 4:1 burst pressures at safe working loads
  • Stainless Dual Bead Hose Clamps included
  • Designed to be used with Factory intercooler
  • All hoses available either individually or as a complete kit
SKU SSH2205-KIT
Brand SAAS
