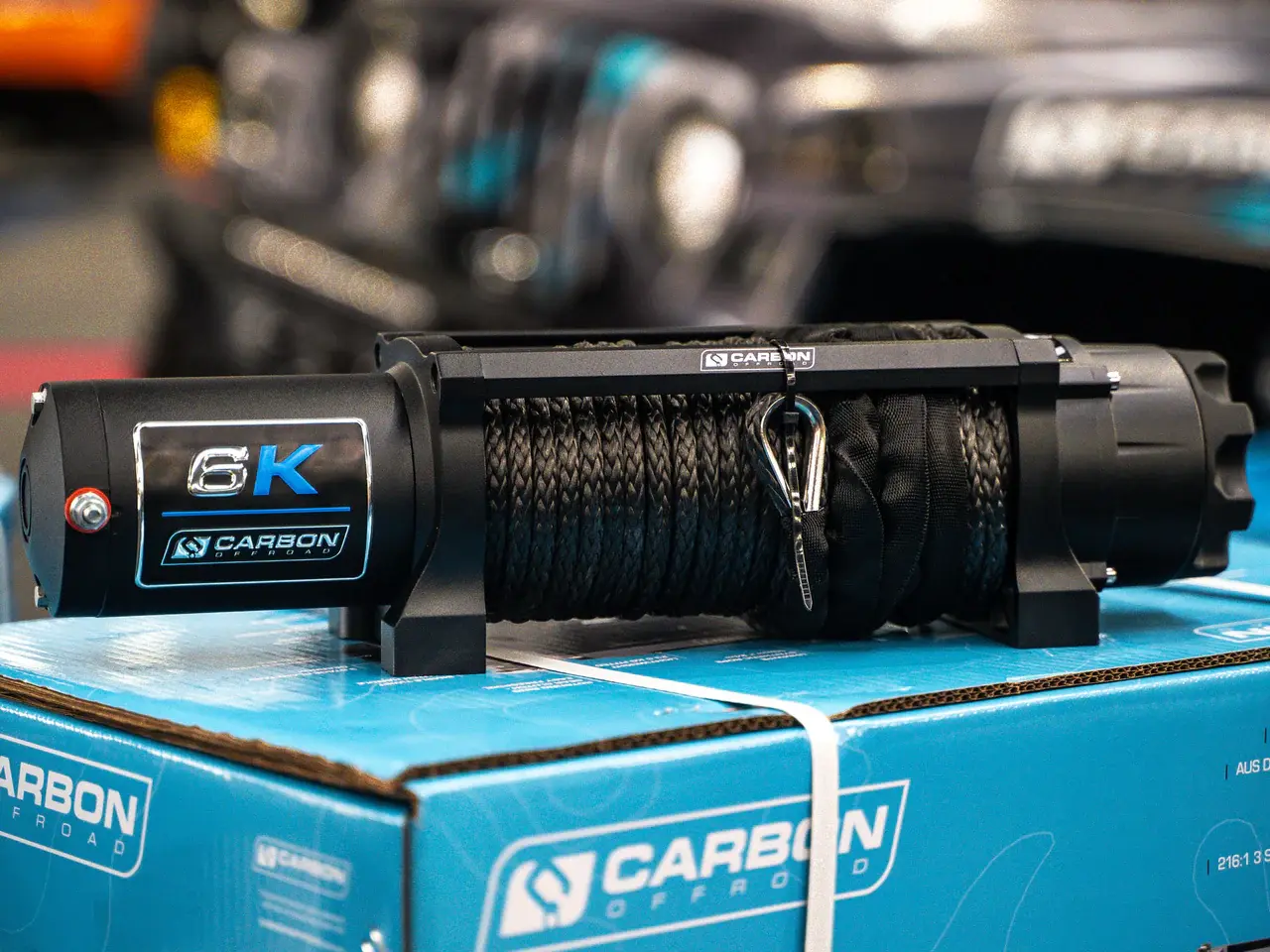

The Carbon Offroad Long Drum 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.

A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.

  • Sealed motor and geartrain allows for flawless operations in extreme conditions
  • Permanent magnet motor provides heavy duty torque for increased pulling power
  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback



Technical Specifications:

  • Part number: CW-XD6L
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 208mm
  • Mounting Bolt Pattern: 254mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 473 x 125 x 120mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
SKU CW-XD6L
Brand Carbon Offroad
