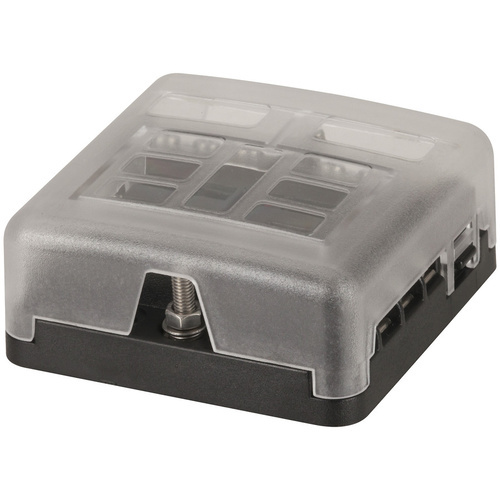

6 Way Fuse Block with Bus Bar

This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

FEATURES

  • Up to 30A per output

  • Red LED blown fuse indication

  • Negative bus bar

SPECIFICATIONS

  • Main Line:

  • Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)

  • Wire Size: #4-6 AWG

  • Single Line:

  • Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)

  • Wire Size: #12-16 AWG

  • Terminals: Nickel Plated Copper

  • Screws: Stainless Steel

SKU TVD-FB6B
Brand 12VoltDirect
