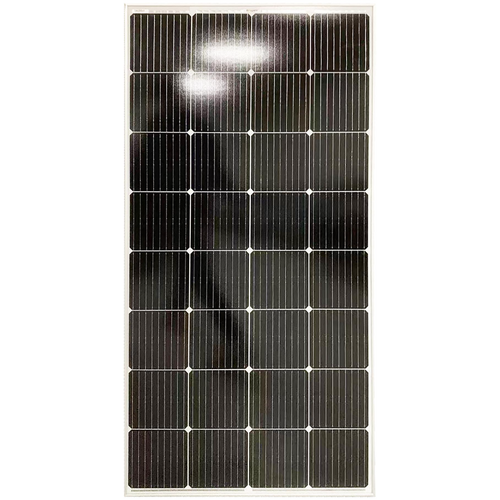

200W Mono-crystalline Solar Panel
SKU code: TVD-SOL200
Monocrystalline, also known as single-crystalline panels are considered to be the most developed category of solar panels. Monocrystalline solar cells are made up of cylindrical silicon ingots, which are then finely sliced to form silicon wafers. The composition of these cells is purer since each cell is made from a single piece of silicon, thus the electrons have more space to flow. Monocrystalline solar panels generally have a black-coloured hue.
Advantages
-
Monocrystalline solar panels have the highest efficiency in comparison to any other type of solar panels.
-
They are space-efficient and require the least amount of space as compared to their counterparts.
-
Monocrystalline solar panels have a higher life span and tend to function quite longer than their warranty period.
-
They perform better in high heat and warm weather conditions.
-
These type of solar panels are made of the highest grade silicon.
Electrical Specifications
|
Rated Power in Watts-Pmax(Wp) |
200 |
|
Open Circuit Voltage-Voc(V) |
23.50 |
|
Short Circuit Current-lsc(A) |
11.13 |
|
Maximum Power Voltage-Vmpp(V) |
19.80 |
|
Maximum Power Current-lmpp (A) |
10.10 |
|
Power Tolerance |
0~+3w |
|
Module Efficiency |
20.40% |
Mechanical Specifications
|
Solar cells |
Mono-crystalline |
|
Cell configuration |
36cells(6*6) |
|
Module dimensions |
1145x870x30mm |
|
Weight |
9.98kg |
|
Superstrate |
3.2 mm, High Transmission, Low Iron, Tempered Glass |
|
Substrate |
White Back-sheet |
|
Frame |
Anodized Aluminium Alloy type 6063T5, Silver color |
| IP Waterproof Rating |
IP67 |
|
Cables |
90m 4mm2cable with MC4 |
Temperature and Max Output Ratings
|
Nominal Module Operating Temperature(NMOT) |
45P±2P |
|
Temperature Coefficient of Voc |
-0.29%/P |
|
Temperature Coefficient of Isc |
0.05%/P |
|
Temperature Coefficient of Pmax |
-0.39%/r |
|
Operational Temperature |
- 40%>+85P |
|
Maximum System Voltage |
1000V DC |
|
Max Series Fuse Rating |
15A |
|
Limiting Reverse Current |
15A |
| SKU | TVD-SOL200 |
| Brand | 12VoltDirect |
