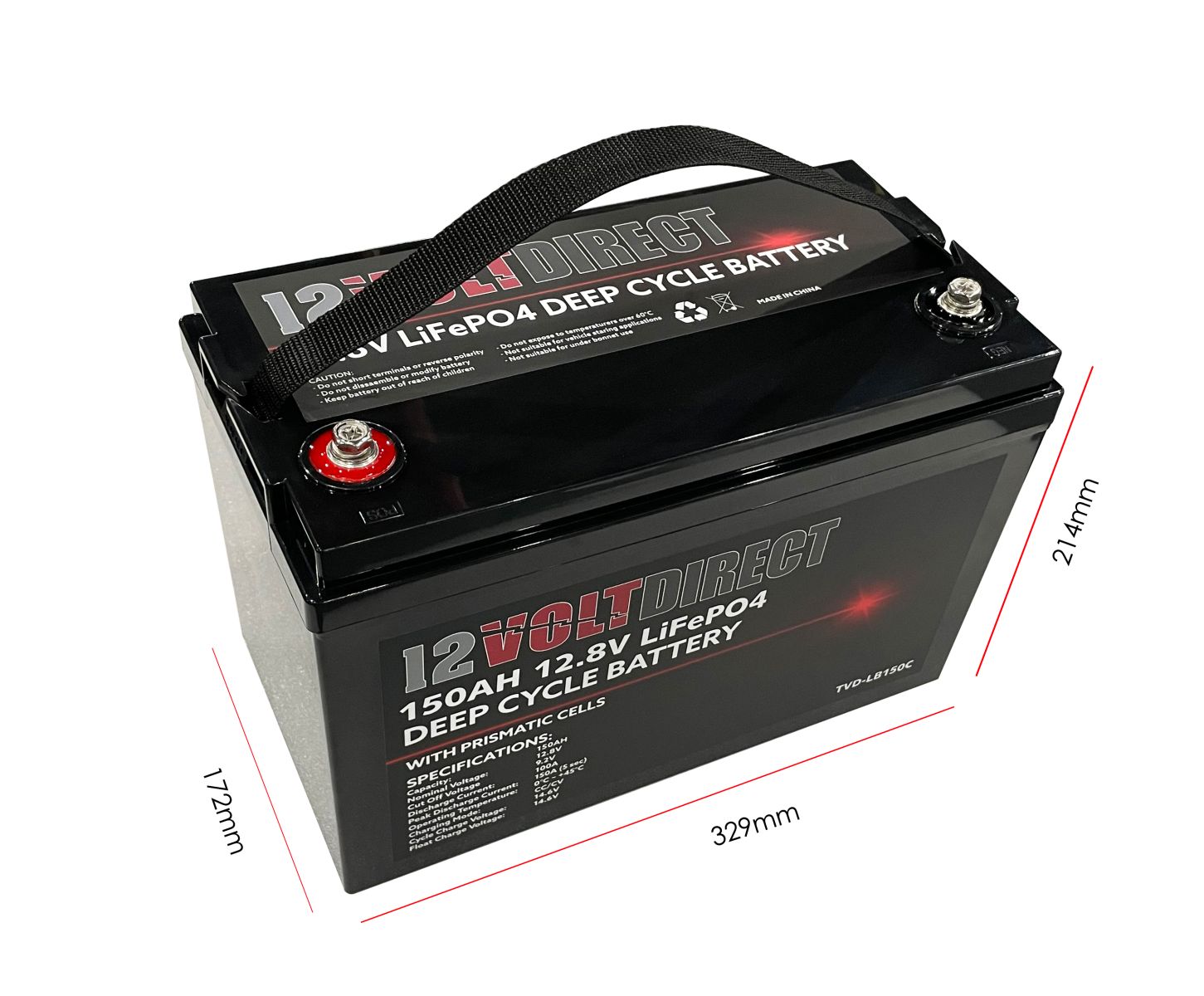

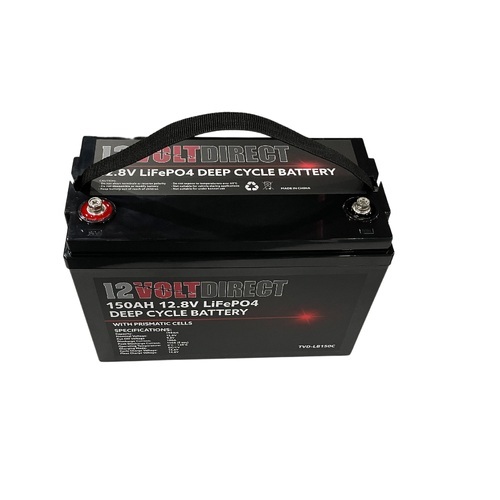

150Ah 12.8V Lithium LiFePO4 Compact Deep Cycle Battery
12 Volt Direct
SKU code: TVD-LB150C
WANT MORE CAPACITY AND LESS WEIGHT?
Introducing 12 Volt Direct's latest release the TVD-LB150C.
Designed to perform where other batteries can't. The TVD-LB150C provides up to 100A continuous power. This is ideal for running fridges, lighting, charging portable devices, and inverters up to 1000 watts. This power plant packs a whopping 150AH of capacity into a slim standard N70 case size and weighs in at only 18KG
Please note this battery is NOT suitable for under-bonnet use.
WHY LITHIUM?
Lithium batteries provide far greater useable amp hours than their lead-acid counterparts. Unlike lead-acid lithium batteries can be deeply discharged without affecting the cycle life. This means you can use the battery for longer before having to recharge. In comparison, AGM batteries are generally recommended to only be discharged to 50% of their capacity to maximize their cycle life whereas lithium can generally be discharged to 80-90% of the capacity.
COST
While the initial investment of a lithium battery is more than lead-acid the service/cycle life of lithium is far superior. Typically lead-acid batteries have a service life of 300-900 cycles whereas Lithium has a cycle life of 2000+ cycles at a much higher discharge. That being said you would expect to replace your lead acid battery 2 or 3 times in comparison to replacing 1 Lithium battery.
.jpg)
Longer life
Lithium batteries are rated for 2,000 – 5,000 cycles and much more if used carefully, giving you several times the life expectancy of standard lead-acid batteries
Powerful
Lithium batteries allow you to pull far more amps out of the same size battery systems
Light-weight
Lithium batteries are less than half the weight of the equivalent lead-acid battery.
Fast recharge
Lithium batteries charge more efficiently and don’t require as many stages during charging. Therefore, they will charge faster, and hold more of the energy from solar panels and other charging devices.
Lithium v AGM Capacities
100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%)
Prismatic Cells
The TVD-LBS150 is high-quality 3.2 volt 100AH prismatic cells connected in series. Prismatic cells provide superior performance than their cheaper cylindrical cell counterparts as they are more stable and shock-resistant.
Built-in Battery Management System (BMS)
The TVD-LB150C is equipped with an advanced internal Battery Management System. This monitors and optimizes each Prismatic cell within the battery. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
The 12 Volt Direct Difference
Deep cycle batteries may appear similar on the outside but don't be fooled, there are key differences between low-quality offerings often found on online auction sites and 12 Volt Direct's premium quality offerings.
.jpg)
| NOMINAL VOLTAGE | 12.8V | |
| CAPACITY | 150AH | |
| MAX SERIES / PARALLEL CONFIG | 4P OR 4P | |
| NORMAL CHARGE VOLTAGE | 14.6V | |
| FLOAT VOLTAGE | 14.0V | |
| DISCHARGE CUTOFF VOLTAGE | 10.0V | |
| CHARGE TEMP | 0-45°C (60°C max discharging) | |
| DISCHARGE TEMP | 0-45°C (60°C max discharging) | |
| SELF-DISCHARGE | Less than 3% per month | |
| INITIAL IMPEDANCE | 220mΩ | |
| WEIGHT | 18KG | |
| MAX CHARGE CURRENT | 50A | |
| MAX DISCHARGE CURRENT | 100A | |
| PULSE CURRENT | 200A (10 Seconds) | |
| DIMENSIONS | 330 X 172 X 217mm | |
| CYCLE LIFE | 2000 CYCLES @ 85% DOD |
| SKU | TVD-LB150C |
| Brand | 12VoltDirect |
